Dimensions (W X D X H): 5.8 × 4.5 × 1.3 in (147 × 115 × 34 mm)
Button: RESET/WPS Button
External Power Supply: 5V/0.6A

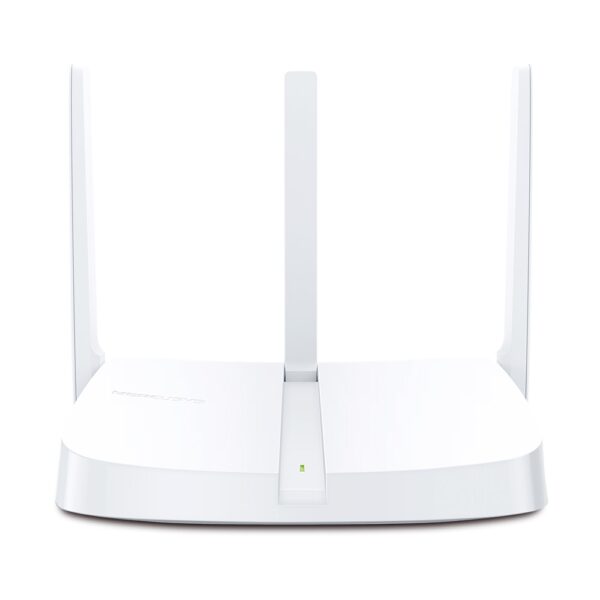

Antenna Type: 3* Fixed Antennas

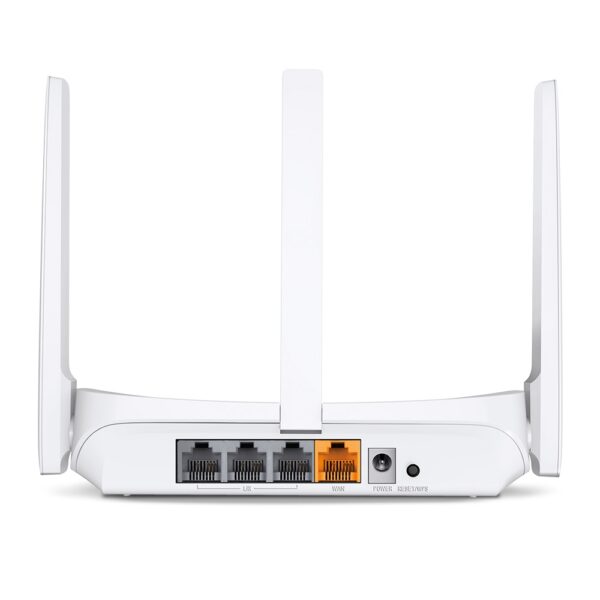

Ethernet Ports:
1* 10/100Mbps WAN Port,
3* 10/100Mbps LAN Ports
Wireless Standards : IEEE 802.11 b/g/n
Frequency :2.4-2.5 GHz
Signal Rate:
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
Reception Sensitivity:
270M: -70dBm@10% PER • 11M: -87dBm@10% PER
130M: -72dBm@10% PER • 6 M: -92dBm@10% PER
54M: -74dBm@10% PER • 1 M: -94dBm@10% PER
Transmission Power: <20dBm (EIRP)
Wireless Security: WPA-PSK/WPA2-PSK
Wireless Functions: Enable/Disable Wireless Radio, WDS Bridging
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Management:
Access Control
Local Management
Remote Management
DHCP: DHCP Server, DHCP Client List
Port Forwarding: Virtual Server, UPnP, DMZ
Firewall Security: IP and MAC Address Binding
Guest Network: 2.4GHz Guest Network
